Lower Pivot
The Lower Pivot is a structural component used in Y25 bogie systems, serving as a pivot point that enables controlled rotational movement between the bogie and connected components. It plays a critical role in load transfer and contributes to the overall stability and performance of the bogie assembly. The component is manufactured in accordance with railway industry standards.
Technical Specifications
| Parameter : | Value |
| Material : | S355J2+N |

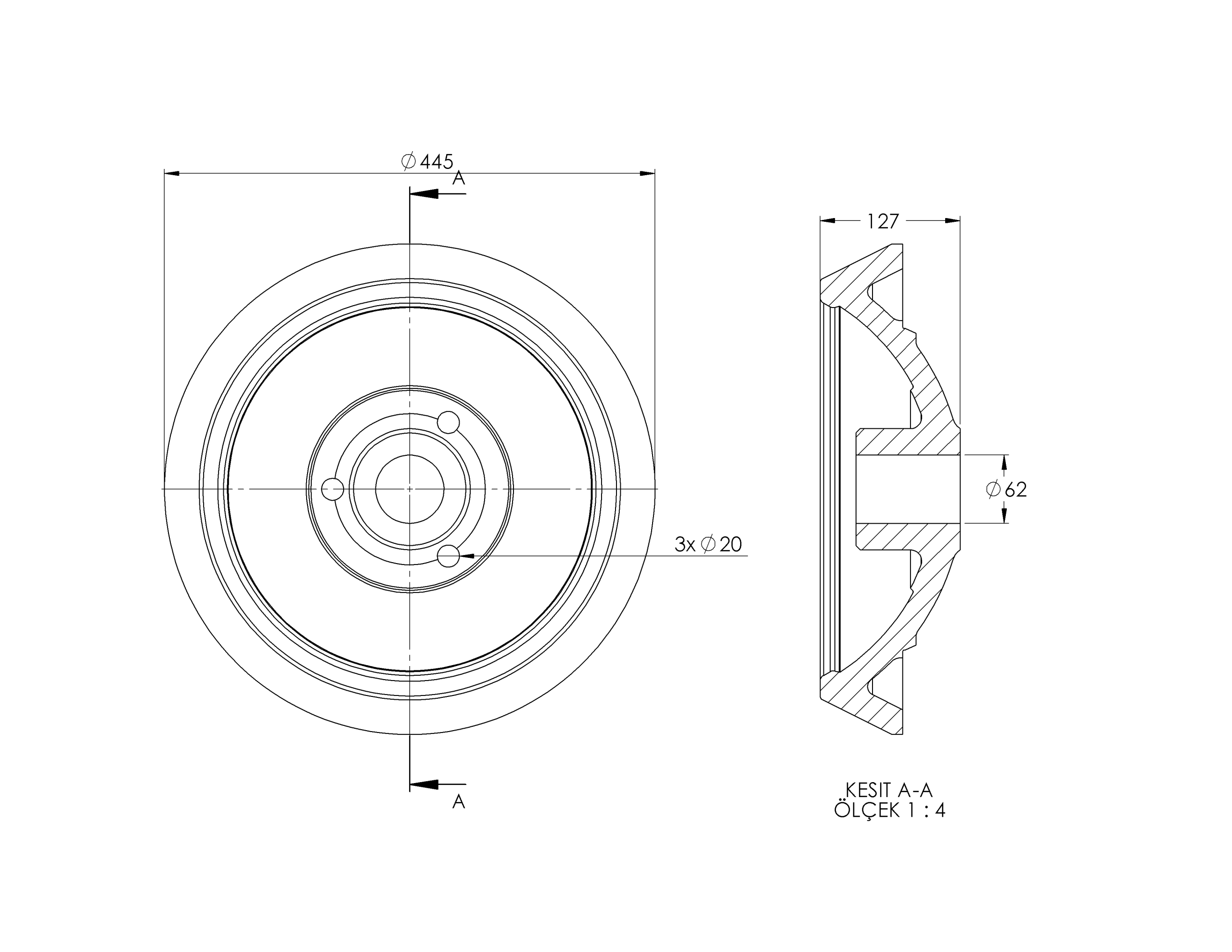

| Drawing No : | B.07.04.01.09 |
| Standard : | EN 10025-2 (S355J2+N) |
| Weight : | 45 kg |
| Production : | Hot Forging and Machining |
| Category : | Railway Forging Parts |
| Application : | Y25 Bogie systems |
- High-strength forged steel structure
- Designed for rotational movement and load transfer in bogie systems
- Excellent fatigue resistance under dynamic loads
- Precision CNC machining
- Robust design for long service life
- Final inspection
- Raw material inspection
- Hot forging
- Heat treatment
- CNC machining
- Surface defect inspection
- Macro/microstructure tests
- Dimensional inspection
- CMM (Coordinate Measuring Machine)
inspection report - NDT (Non-Destructive Testing)
- EN standards compliance
- ISO 9001 quality management
- 3.1 material certificate
- NDT inspection
- Material Certificate (3.1)
- CMM Dimensional Measurement Report
- Final Inspection Report
- Traceability Documentation
- Packaging for safe transportation
