Trunnion

Trunnion

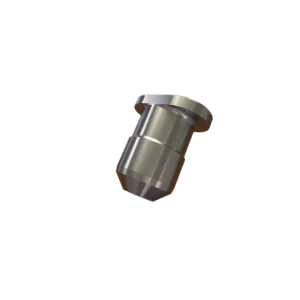

The trunnion is a structural component used in Y25 bogie systems, serving as a pivot point that enables controlled rotation and movement of suspension elements. It contributes to load transfer and stability within the bogie assembly and is manufactured in accordance with railway industry technical requirements.

Technical Specifications

Parameter      : Value
Material           : 20MnCr5

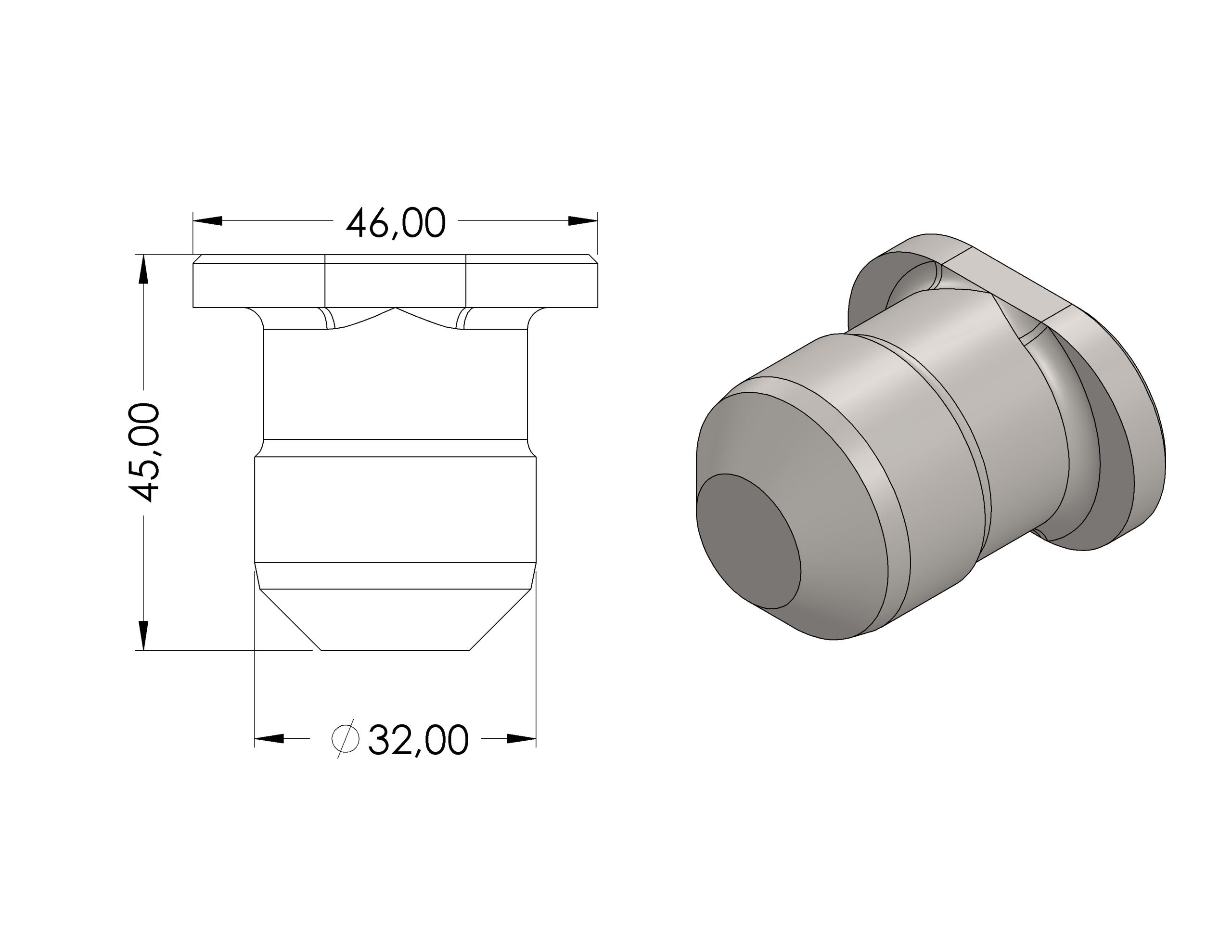

Drawing No    : B.07.03.03.02
Standard         : DIN TS EN 10083-2
Weight              : 0.4 kg
Production     : Hot Forging and Machining
Category          : Railway Forging  Parts
Application     : Y25 Bogie systems
  • High-strength forged steel structure
  • Designed for pivot and load transfer applications
  • Excellent fatigue resistance
  • Precision CNC machining
  • Full traceability documentation
  • Final inspection
  • Raw Material Inspection
  • Hot forging
  • Heat treatment
  • CNC machining
  • Surface defect inspection
  • Macro/microstructure tests
  • Dimensional inspection
  • CMM (Coordinate Measuring Machine) inspection report
  • NDT (Non-Destructive Testing)
  • EN standards compliance
  • ISO 9001 quality management
  • 3.1 material certificate
  • NDT inspection
  • Material Certificate (3.1)
  • CMM Dimensional Measurement Report
  • Final Inspection Report
  • Traceability Documentation
  • Packaging for safe transportation
