Whellset Guiding System (Normal)

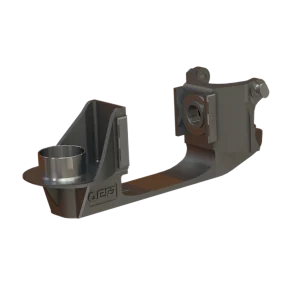

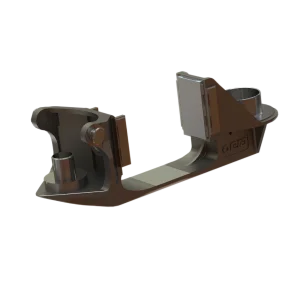

Wheelset Guiding System (Normal) is a structural component used in railway bogie assemblies to support and guide the wheelset without a sensor mechanism. It contributes to the stability and controlled movement of the wheelset within the suspension system. The component is manufactured in accordance with relevant railway industry technical requirements.
Technical Specifications
| Parameter : | Value |
| Material : | E230-400MS, E260-450MS, E300-450MS |
| Drawing No : | ERA-WGSA-001-R1 |
| Standard : | EN 10204 |
| Weight : | 46 kg |
| Production : | Casting, Machining, Welding |
| Category : | Railway Casting Parts |
| Application : | Bogie systems |
- High-strength cast steel structure
- Suitable for heavy-duty railway applications
- Machined surfaces for precise assembly
- Robust design for long service life
- Full traceability documentation
- Raw material inspection
- Casting
- Machining
- Welding
- Surface defect inspection
- Macro / Micro structure tests
- Dimensional inspection
- CMM (Coordinate Measuring Machine)
measurement report
- EN standards compliance
- ISO 9001 quality management
- EN 10204 3.1 material certificate
- NDT inspection
- Material Certificate (3.1)
- CMM Dimensional Measurement Report
- Homologation Report
- Final Inspection Report
- Traceability Documentation
- Packaging for safe transportation
